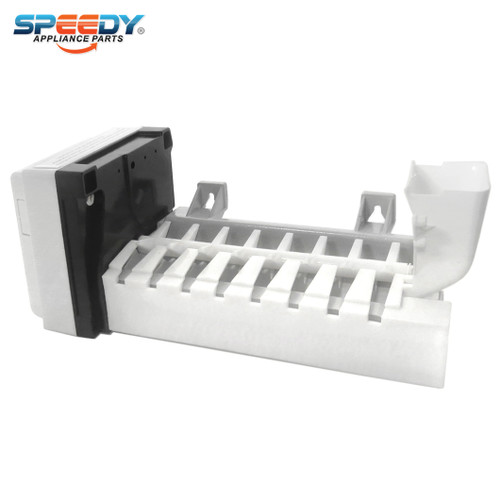

W11577195 Refrigerator Ice Maker Replacement for Whirlpool / Maytag / KitchenAid

(No reviews yet) Write a Review
SKU: APNW11577195
CONDITION: New
$149.46
$98.25
(You save $51.21 )
Compatible Brands:
Ikea
Compatible Brands:
Jenn-Air
Compatible Brands:
Kenmore
Compatible Brands:
KitchenAid
Compatible Brands:
Maytag
Compatible Brands:
Whirlpool

Replacement ice maker used for some Ikea, Jenn-Air, Kenmore, KitchenAid, Maytag, and Whirlpool refrigerator models.

Directly Replaces: W11577195, WPW10764668, W10498261, W10764668, W10281053, W10347637, W11563197, 4976822, AP7185516, EAP16730626, PD00075253, PS16730626.

Features:

  • Creates ice cubes to be stored in the ice bin.
  • Ceiling mounted ice maker.
  • Has 2 pin connector in head.
  • Includes (1) 6-Cube Ice Maker with 3-Wire Harness and Wire Connector.

Specifications:

  • Color: White / Gray/ Off-White / Black / Teal / Red / Yellow.
  • Material: Plastic / Metal.
  • Finish: Glossy.
  • Electrical Specs: Heater 115V, 50/60Hz, 110W; Motor 12VDC.
  • Dimensions: 8-7/8"L x 4-1/8"W x 2-7/8"H.
  • Additional Dimensions: 3-wire harness extends approx. 20" from ice maker; Wire connector extends 4-1/8" from ice maker.

NOTE: This item is commonly misdiagnosed. Please make sure this is the part needed, prior to purchase, as this item is not eligible for return unless the incorrect icemaker was purchased. Other common parts that fail in conjunction with this ice maker are the ice room fan, the ice level emitter / receiver boards, ice tray thermistor. User should also should check that water is being correctly diverted to the ice maker from the inlet valve. See the tech sheet for diagnostic tests you can perform to help determine the point of failure.

Tech Sheet
